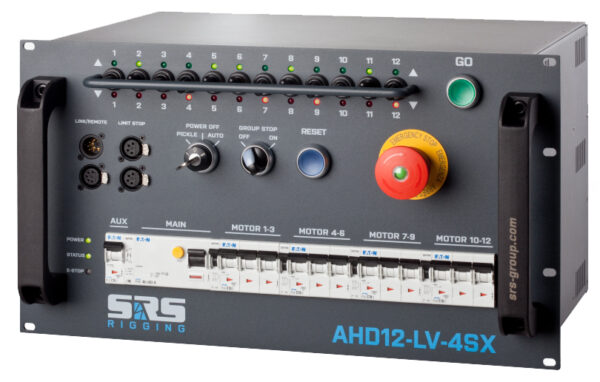

SRS Rigging 12-Way AHD-LV Advanced Digital Motor Controller

The SRS Rigging 12-Way AHD-LV Advanced Digital Motor Controller is designed to control up to 12 electrically compatible motors, either separately or simultaneously – controlled via CMC series Digital Cable Remote Controller.

The device is equipped with a unique APA (Automatic Phase Align) module, which guarantees that the motors are moving in the same direction on any alignment of input phases. If any line wire is disconnected, the hoist controller stops to ensure safe operation.

Another feature of AHD-LV is the AVM (Automatic Voltage Metering) module. This module checks the main voltage for AC 400V +-20%, star configuration and protects the hoists in case of a problem with the main voltage.

The AHD-LV has an additional key switch for the Group-stop function. When active, the MCB trip of any hoist will cause an E-STOP on all connected hoists.

The unit comes complete with a 20m Digital Cable Remote Controller.

The controller has a 32A TPN Inlet and 4 of 3-Way Socapex Outlets

Click here to view product website

• Hire Price Per Week: £90.00
